Q11F-20 Brass High Handle Air Conditioning Ball Valve
Product overview
Product model: Q11F-20
Nominal diameter: DN15~40mm
Nominal pressure: PN2.0MPa
Working medium: tap water
Operating temperature: 0℃≤ T ≤100℃

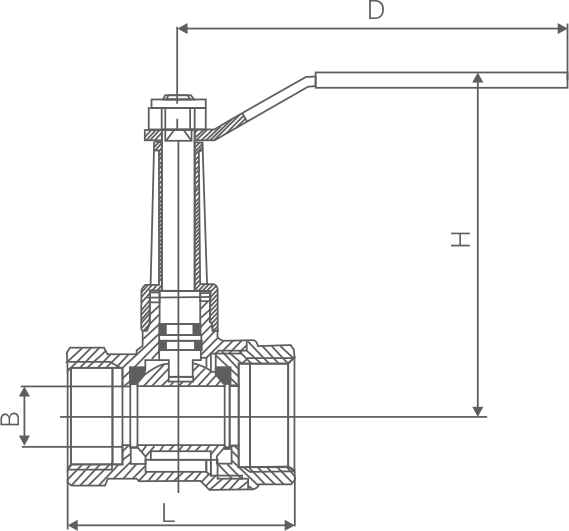

Q11F-20 Brass High Handle Air Conditioning Ball Valve specifications and dimensions
| DN(mm) | P | L | B | D | H |
| 15 | G1/2 | 52.8 | 12.5 | 95 | 83 |
| 20 | G3/4 | 63 | 15 | 95 | 85 |
| 25 | G1 | 72 | 20 | 111 | 90 |
| 32 | G1 1/4 | 80 | 25 | 139 | 108 |
| 40 | G1 1/2 | 90.6 | 32 | 139 | 111 |
Reminder:
All text, data and pictures in this article are for reference only.To see more details of the Q11F-20 Brass High Handle Air Conditioning Ball Valve performance parameters, structural dimension parameters, pricing, etc., or to request high quality printing samples, please Contact us.
