KPF Manual Flow Balance Valve
Product overview
Product model: KPF
Nominal diameter: DN15~600mm
Nominal pressure: PN1.6MPa
Applicable temperature: ≤100℃
Main material: gray cast iron, ductile iron, stainless steel
Flange standard: GB/T17241.6GB/T9113
Test standard: GB/T13927API598
KPF Manual Flow Balance Valve main components and materials
| Part Name | Body, bonnet, disc, packing pressure sleeve | Stem seals | Stem nut | washer | filler |
| material | Gray cast iron, ductile iron | stainless steel | Copper | Rubber asbestos board | Expanded graphite |

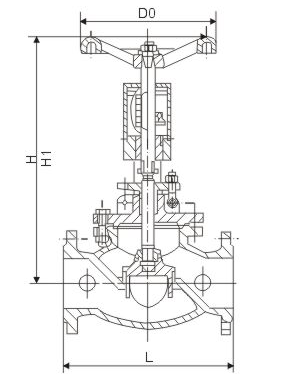

KPF Manual Flow Balance Valve main shape connection size
| DN | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 | 400 | 500 | 600 |
| L | 130 | 150 | 160 | 180 | 200 | 230 | 290 | 310 | 350 | 400 | 480 | 495 | 622 | 698 | 787 | 914 | 978 | 1295 |
| H | 150 | 160 | 182 | 192 | 250 | 264 | 380 | 413 | 446 | 540 | 623 | 687 | 782 | 914 | 968 | 1037 | 1440 | 1790 |
| H1 | 160 | 170 | 197 | 207 | 270 | 284 | 410 | 448 | 506 | 595 | 688 | 762 | 867 | 1009 | 1073 | 1152 | 1440 | 1790 |
| Do | 80 | 180 | 80 | 90 | 100 | 120 | 200 | 200 | 240 | 240 | 360 | 400 | 500 | 500 | 680 | 680 |
Reminder:
All text, data and pictures in this article are for reference only.To see more details of the KPF Manual Flow Balance Valve performance parameters, structural dimension parameters, pricing, etc., or to request high quality printing samples, please Contact us.
